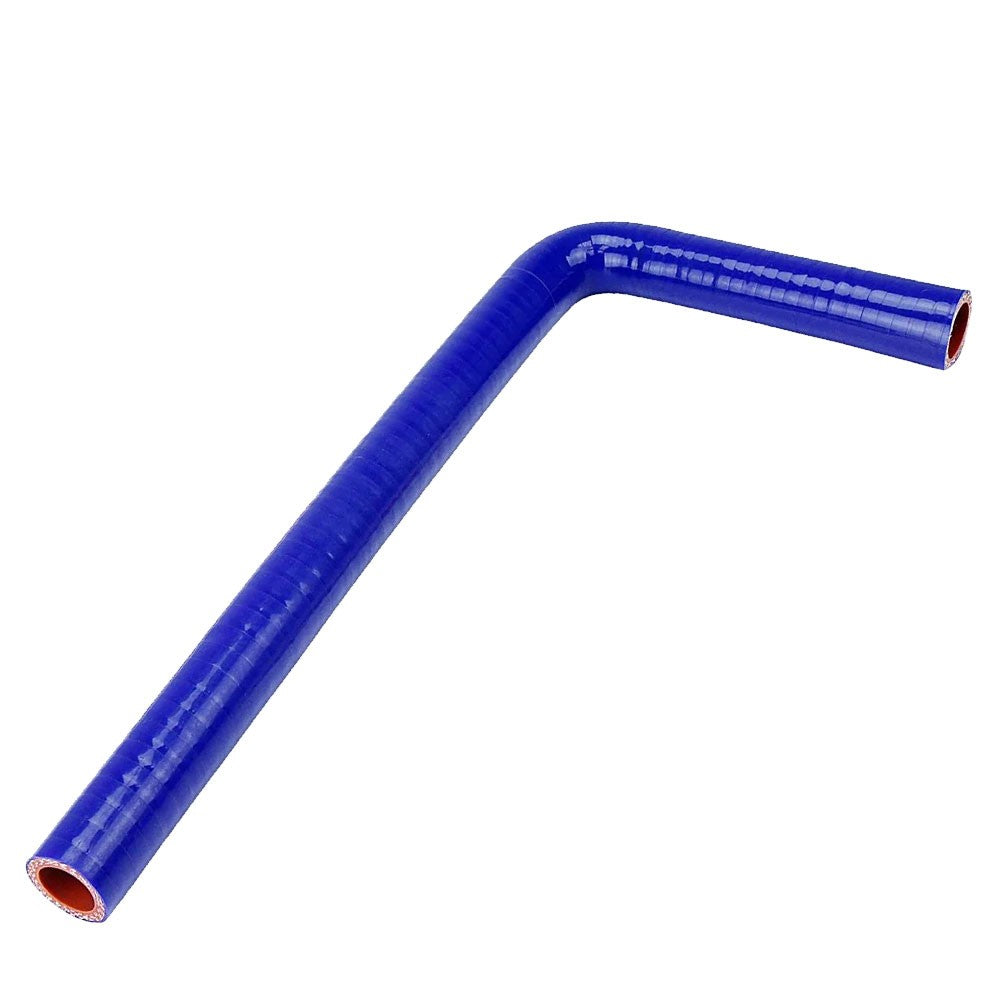

HPS 5/8″ (16mm) ID, with 5″ and 24″ Leg Long Blue 4-Ply Reinforced Silicone 90 Degree Elbow Coupler Hose

HPS 5/8″ (16mm) high temperature 4-ply reinforced Blue silicone 90 degree elbow coupler hose with 5″ and 24″ leg meet and exceed SAEJ20 industry standards, ideal for heavy duty pressure connections and provides excellent resistance for high temperature applications. This HPS 5/8 inch silicone elbow can be easily trimmed to replace OEM or aftermarket rubber heater hose. Unlike the traditional rubber heater hose elbow being sold in the auto parts store, HPS performance silicone 90 degree bend elbow coupling hose is designed and engineered to meet high performance requirements specified in various industry standards, therefore make it great for marine and industrial use, heater hoses, supercharger aftercoolers, and air-to-water heat exchangers. The flexible line makes maneuvering the hose in the engine bay a quick and pain-free process.

Technical Specification
Product Type: Silicone 90 Degree Elbow Coupler Hose
Temperature Range: -65 deg. F to + 350 deg. F (177 deg. C)
Reinforced Layer: 4-ply polyester

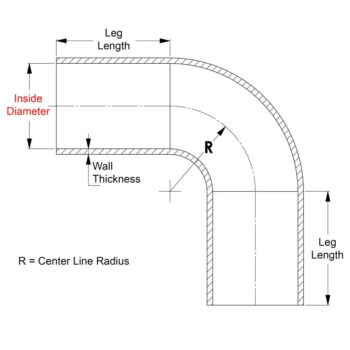

Hose Inside Diameter: 5/8″ (16mm)
Hose Outside Diameter: 1″ (25mm)
Leg Length: 5″ and 24″
Center Line Radius: 1″
Wall Thickness: 5mm +/- 0.5mm
Color: Blue
UV and ozone resistant

Remark: Silicone hose is NOT compatible with fuel or oil.
Silicone hose is compatible with water or anti-freeze such as coolant.

• Material: 4-Ply Reinforced Silicone
• Color: Blue
• Leg length: 5″ and 24″. Can be easily trimmed to replace OEM or aftermarket rubber heater hose.
• Made of High Temperature 4-ply Reinforced Silicone (Maximum temperature rating 350F)
• Meet and exceed SAEJ20 industry standards, ideal for heavy duty pressure connections and provides excellent resistance for high temperature applications
• UV and ozone resistant. Silicone hose is NOT compatible with fuel or oil
• Great for marine and industrial use, custom turbo or intercooler piping fabrication, DIY intake or radiator cooling system

Application:

Universal Fit

Remark:

Installation: Compatible with Water/Coolant ONLY, Not for Fuel/Oil

Product Content:

• 1 x 90 Degree Elbow Coupler Hose

The product does not come with manual/instruction, Professional Install Recommended

Cross Reference Number:

• HTSEC90-062-L5X24-BLUE, HTSEC90062L5X24BLUE
