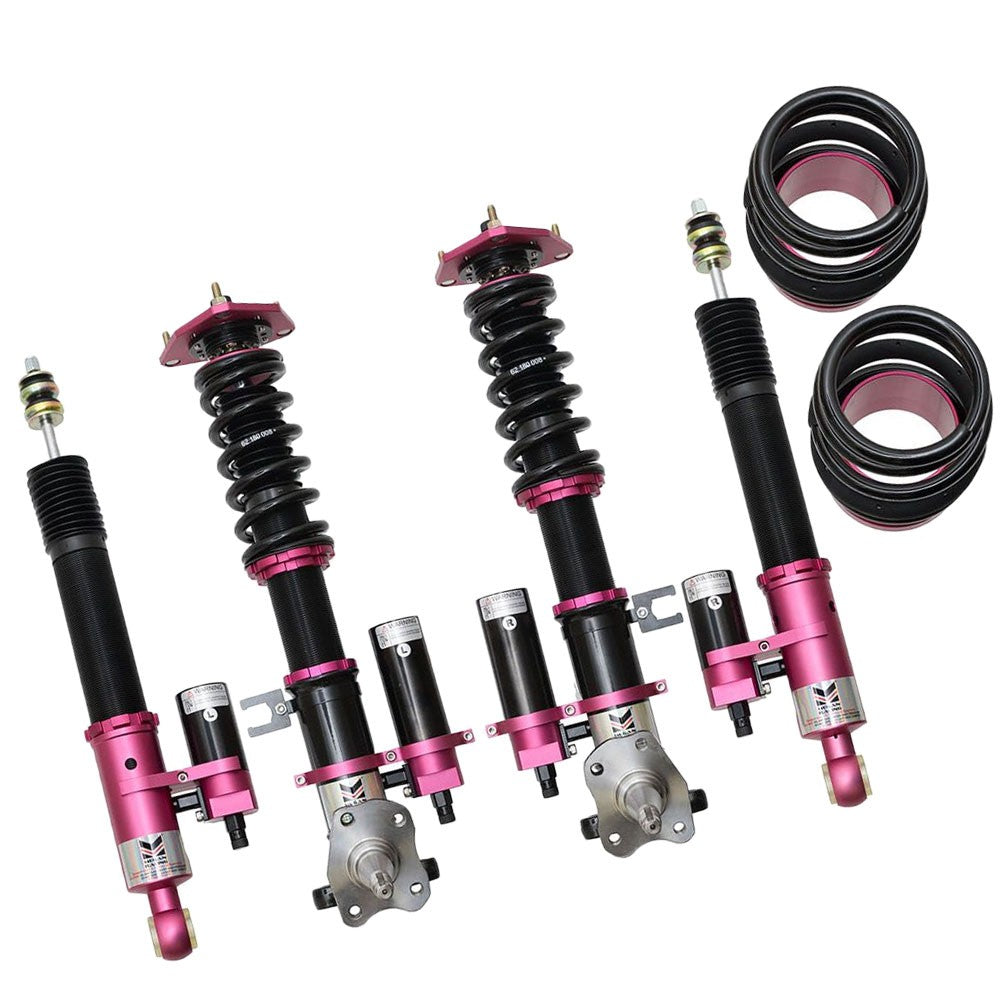

Megan Pink Spec-RS Series Coilover Springs Kit For 83-87 Toyota Corolla E80

The AE86 Toyota Corolla is already 20 years old, and yet to this day remains an reckoning force in motor sports. Most predominantly used in drifting, the AE86 dominates the drift series against opponents with overwhelming power and advanced technology while sticking to the basics of performance with balance and agility.

The AE86 Corolla is well balanced and is most often powered by the race-proven 4A-GE motors that transfer energy through their FR-Drive train. Though this vehicle is an amazing vehicle in it s stock form, it always leaves something to be desired for the truth enthusiast who has the need to bring the most out of their performance machine.

Megan Racing has taken on the AE86 Corolla GTS/SR5 Chassis and has finally unveiled our Coil over Damper Kit. After months of development and assistance from several D1GP and Formula-D drivers, Megan Racing was finally able to perfect our Suspension System for these extremely popular cars while being cost-effective.

Our damper kits feature Built-In Camber plates which would normally market for about $240.00 and give you the full adjustable Ride-Height capabilities as most $2,000+ suspension systems in the market.

These dampers are a Direct Bolt-On, and you do NOT need to Re-Use your 20 year old OEM front spindles.

The shocks have a tolerance of +/- 2kg/mm so you are able to purchase springs separately to tune to your desired handling characteristics

• Material: CNC Machined Steel and Aluminum Construction
• Color: Pink
• Finish: Anodized
• Type: Suspension Coilover
• Style: Spec-RS Series
• Front Spring rate: 8kg/mm, Rear Spring rate: 6kg/mm
• Separate Compression and Rebound adjustments. External Reservoir for additional oil capacity and separate compression adjustment
• Front Adjustable Camber Plates
• Front and Rear Adjustable Ride-Height
• Compression adjustment on external reservoir
• Rebound adjustment on top of shock

Application:

For 1983-1987 Toyota Corolla Spindles attached (E80 5th Gen)

Remark:

Installation:

Product Content:

• 1 Set of Coilover Spring Kit (2 Front + 2 Rear)

The product does not come with manual/instruction, Professional Install Recommended

Cross Reference Number:

• MR-CDK-AE86-RS, MRCDKAE86RS
